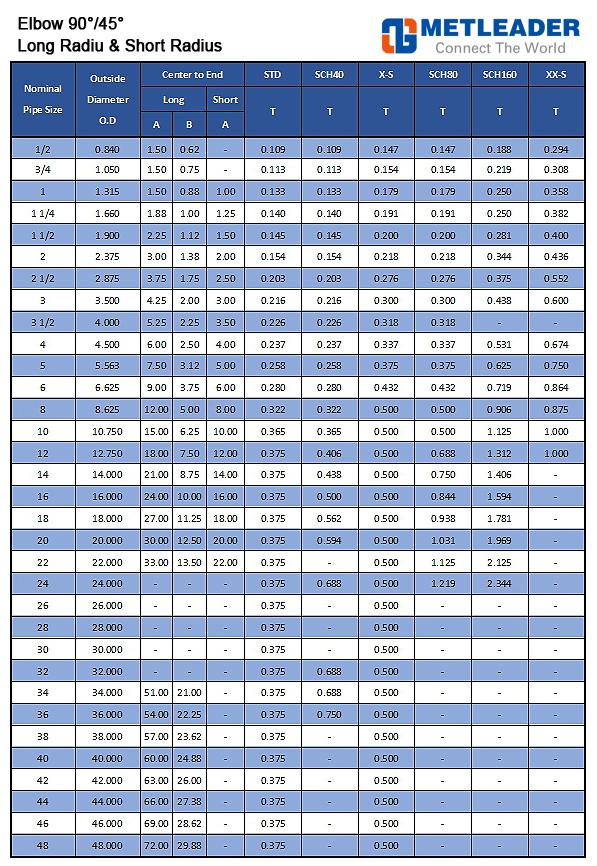

ANSI B16.9 Short Radius 90° Pipe Elbow Size Table
SPECIFICATIONS
ANSI B16.9 Short Radius 90° Pipe Elbow Size Table
Short radius 90° pipe elbow Size table was one of the best-selling products in the year of 2017. AS a professional manufacturer and exporter, Metleader supplies all other kind of pipe fittings which are made of carbon steel and stainless steel, according to the standard of AMSE B16.9, DIN, JIS, GOST, EN, BS,KR, etc.

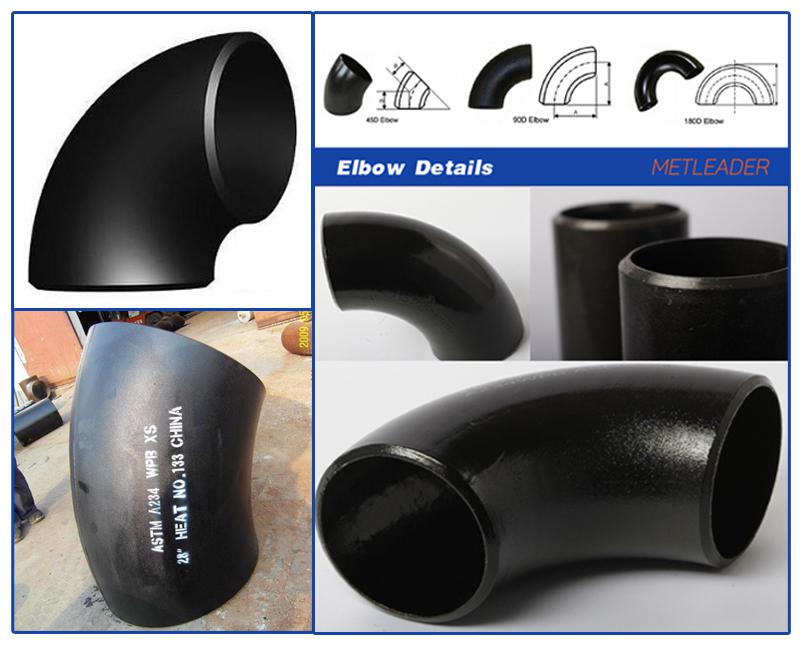

The Short radius 90° pipe elbow is also called the 1D elbow. Refers to the elbow radius of curvature of the pipe diameter of 1 time times; also known as 1D. The curvature radius of the elbow equals 1 time times the diameter of the pipe. Usually the angle of 90°. Visually, the Short radius 90° pipe elbow is much shorter than the long radius elbow, and the bend radius of the elbow is very short. The long radius elbow is the most commonly used, the general default is also a long radius, high pressure or high velocity of the place will use a long radius, if it is the solid transport pipeline resistance requirements of the time to use a greater radius of the elbow. Short radii are generally used in low pressure fluids or where elbows are limited. If there is no condition limit or not indicated in the contract the preferred choice of long radius elbow.
If you need this product you can contact us. or send me email sales@metleader.com
