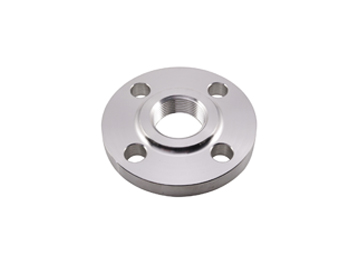

Threaded Flange

ASME/ANSI B16.5 Class 400 Threaded Flanges

SPECIFICATIONS




▪  All dimensions are in inches
▪  These flanges will be furnished with a 1/16" raised face unless otherwise specified
▪  Flat face option available
Nominal
Pipe Size
Outside
Diameter
Thickness  Raised Face
Diameter
Length
Thru Hub
Hub
Diameter
Approximate Weight  Bolt Circle Number
of Holes
Diameter
of Holes

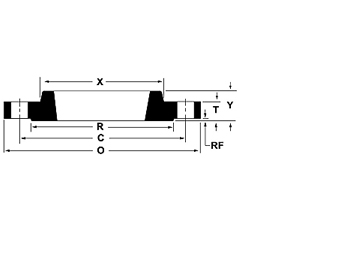

(O) (T)  (R)  (Y) (X) (lbs)  (C)
1/2 3.75  0.56  1.38  0.88  1.50  2 2.63 4 0.63
3/4 4.63  0.63  1.69  1.00  1.88  3 3.25  4 0.75
1 4.88  0.69  2.00  1.06  2.13  4 3.50  4 0.75
1 1/4 5.25  0.81  2.50  1.13  2.50  5 3.88  4 0.75
1 1/2 6.13  0.88  2.88  1.25  2.75  7 4.50  4 0.88
2 6.50  1.00  3.63  1.44  3.31  9 5.00  8 0.75
2 1/2 7.50  1.13  4.13  1.63  3.94  13 5.88  8 0.88
3 8.25  1.25  5.00  1.81  4.63  16 6.63  8 0.88
3 1/2 9.00  1.38  5.50  1.94  5.25  21 7.25  8 1.00
4 10.00  1.38  6.19  2.00  5.75  26 7.88  8 1.00
5 11.00  1.50  7.31  2.13  7.00  31 9.25  8 1.00
6 12.50  1.63  8.50  2.25  8.13  44 10.63  12 1.00
8 15.00  1.88  10.63  2.69  10.25  67 13.00  12 1.13
10 17.50  2.13  12.75  2.88  12.63  91 15.25  16 1.25
12 20.50  2.25  15.00  3.13  14.75  130 17.75  16 1.38
14 23.00  2.38  16.25  3.31  16.75  180 20.25  20 1.38
16 25.50  2.50  18.50  3.69  19.00  235 22.50  20 1.50
18 28.00  2.63  21.00  3.88  21.00  285 24.75  24 1.50
20 30.50  2.75  23.00  4.00  23.13  345 27.00  24 1.63
22 33.00  2.88  25.25  4.25  25.25  405 29.25  24 1.75
24 36.00  3.00  27.25  4.50  27.63  510 32.00  24 1.88
