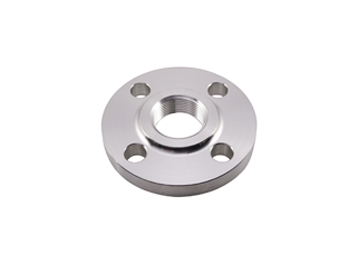

Threaded Flange

ASME/ANSI B16.5 Class 1500 Threaded Flanges

SPECIFICATIONS




▪  All dimensions are in inches
Nominal
Pipe Size
Outside
Diameter
Thickness  Raised Face
Diameter
Length
Thru Hub
Hub
Diameter
Approximate Weight  Bolt Circle Number
of Holes
Diameter
of Holes

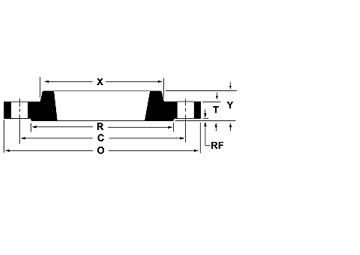

(O) (T)  (R)  (Y) (X) (lbs)  (C)
1/2 4.75  0.88  1.38  1.25  1.50  4 3.25  4 0.88
3/4 5.13  1.00  1.69  1.38  1.75  5 3.50  4 0.88
1 5.88  1.13  2.00  1.63  2.06  8 4.00  4 1.00
1 1/4 6.25  1.13  2.50  1.63  2.50  9 4.38  4 1.00
1 1/2 7.00  1.25  2.88  1.75  2.75  12 4.88  4 1.13
2 8.50  1.50  3.63  2.25  4.13  25 6.50  8 1.00
2 1/2 9.63  1.63  4.13  2.50  4.88  36 7.50  8 1.13
3 10.50  1.88  5.00  2.88  5.25  48 8.00  8 1.25
4 12.25  2.13  6.19  3.56  6.38  73 9.50  8 1.38
5 14.75  2.88  7.31  4.13  7.75  130 11.50  8 1.63
6 15.50  3.25  8.50  4.69  9.00  165 12.50  12 1.50
8 19.00  3.63  10.63  5.63  11.50  260 15.50  12 1.75
10 23.00  4.25  12.75  6.25  14.50  435 19.00  12 2.00
12 26.50  4.88  15.00  7.13  17.75  580 22.50  16 2.13
