Stainless Steel

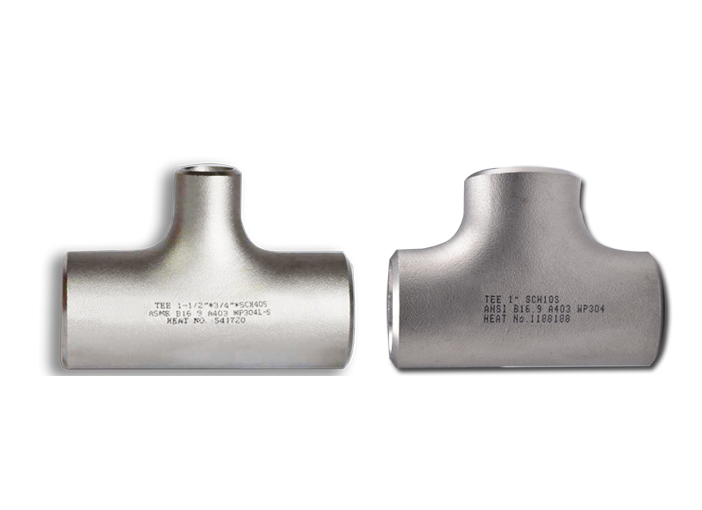

Stainless Steel JIS/KS Tee
SPECIFICATIONS
Stainless Steel
JIS/KS
Tee
▪ All dimensions are in inches
▪ All dimensions are in inches

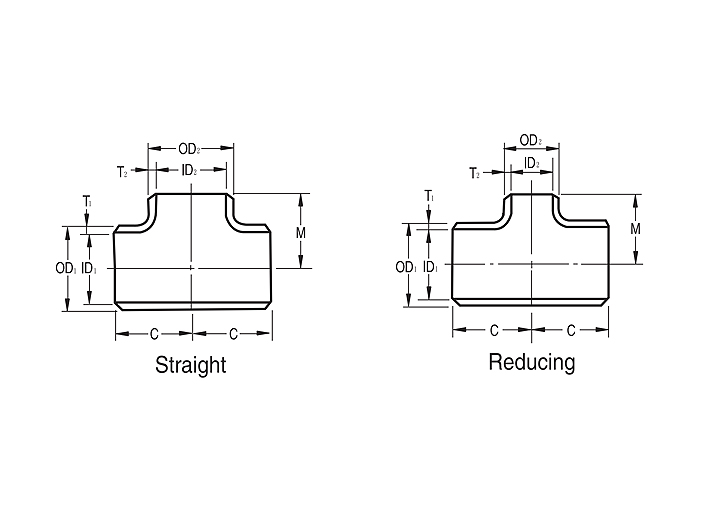

| Nominal Pipe Size |
Outside Diameter |
Center to End | Wall Thickness T | |||||||
| C | M | SCH5S | SCH10S | SCH20S | ||||||
| OD1 | OD2 | T1 | T2 | T1 | T2 | T1 | T2 | |||
| 15 | 21.7 | 21.7 | 25.4 | 25.4 | 1.65 | 1.65 | 2.1 | 2.1 | 2.5 | 2.5 |
| 20 | 27.2 | 27.2 | 28.6 | 28.6 | 1.65 | 1.65 | 2.1 | 2.1 | 2.5 | 2.5 |
| 25 | 34.0 | 34.0 | 38.1 | 38.1 | 1.65 | 1.65 | 2.8 | 2.8 | 3.0 | 3.0 |
| 32 | 42.7 | 42.7 | 47.6 | 47.6 | 1.65 | 1.65 | 2.8 | 2.8 | 3.0 | 3.0 |
| 32X32X25 | 42.7 | 34.0 | 47.6 | 47.6 | 1.65 | 1.65 | 2.8 | 2.8 | 3.0 | 3.0 |
| 40 | 48.6 | 48.6 | 57.2 | 57.2 | 1.65 | 1.65 | 2.8 | 2.8 | 3.0 | 3.0 |
| 40X40X32 | 48.6 | 42.7 | 57.2 | 57.2 | 1.65 | 1.65 | 2.8 | 2.8 | 3.0 | 3.0 |
| 40X40X25 | 48.6 | 34.0 | 57.2 | 57.2 | 1.65 | 1.65 | 2.8 | 2.8 | 3.0 | 3.0 |
| 50 | 60.5 | 60.5 | 63.5 | 63.5 | 1.65 | 1.65 | 2.8 | 2.8 | 3.5 | 3.5 |
| 50X50X40 | 60.5 | 48.6 | 63.5 | 60.3 | 1.65 | 1.65 | 2.8 | 2.8 | 3.5 | 3.0 |
| 50X50X32 | 60.5 | 42.7 | 63.5 | 57.2 | 1.65 | 1.65 | 2.8 | 2.8 | 3.5 | 3.0 |
| 65 | 76.3 | 76.3 | 76.2 | 76.2 | 2.10 | 2.10 | 3.0 | 3.0 | 3.5 | 3.5 |
| 65X65X50 | 76.3 | 60.5 | 76.2 | 69.9 | 2.10 | 2.10 | 3.0 | 2.8 | 3.5 | 3.5 |
| 65X65X40 | 76.3 | 48.6 | 76.2 | 66.7 | 2.10 | 2.10 | 3.0 | 2.8 | 3.5 | 3.0 |
| 80 | 89.1 | 89.1 | 85.7 | 85.7 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 4.0 |
| 80X80X65 | 89.1 | 76.3 | 85.7 | 82.6 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 3.5 |
| 80X80X50 | 89.1 | 60.5 | 85.7 | 76.2 | 2.10 | 2.10 | 3.0 | 2.8 | 4.0 | 3.5 |
| 90 | 101.6 | 101.6 | 95.3 | 95.3 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 4.0 |
| 90X90X80 | 101.6 | 89.1 | 95.3 | 92.1 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 4.0 |
| 90X90X65 | 101.6 | 76.3 | 95.3 | 88.9 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 3.5 |
| 100 | 114.3 | 114.3 | 104.8 | 104.8 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 4.0 |
| 100X100X90 | 114.3 | 101.6 | 104.8 | 101.6 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 4.0 |
| 100X100X80 | 114.3 | 89.1 | 104.8 | 98.4 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 4.0 |
| 100X100X65 | 114.3 | 76.3 | 104.8 | 95.3 | 2.10 | 2.10 | 3.0 | 3.0 | 4.0 | 3.5 |
| 125 | 139.8 | 139.8 | 123.8 | 123.8 | 2.80 | 2.80 | 3.4 | 3.4 | 5.0 | 5.0 |
| 125X125X100 | 139.8 | 114.3 | 123.8 | 117.5 | 2.80 | 2.10 | 3.4 | 3.0 | 5.0 | 4.0 |
| 125X125X90 | 139.8 | 101.6 | 123.8 | 114.3 | 2.80 | 2.10 | 3.4 | 3.0 | 5.0 | 4.0 |
| 125X125X80 | 139.8 | 89.1 | 123.8 | 111.1 | 2.80 | 2.10 | 3.4 | 3.0 | 5.0 | 4.0 |
| 150 | 165.2 | 165.2 | 142.9 | 142.9 | 2.80 | 2.80 | 3.4 | 3.4 | 5.0 | 5.0 |
| 150X150X125 | 165.2 | 139.8 | 142.9 | 136.5 | 2.80 | 2.80 | 3.4 | 3.4 | 5.0 | 5.0 |
| 150X150X100 | 165.2 | 114.3 | 142.9 | 130.2 | 2.80 | 2.10 | 3.4 | 3.0 | 5.0 | 4.0 |
| 200 | 216.3 | 216.3 | 177.8 | 177.8 | 2.80 | 2.80 | 4.0 | 4.0 | 6.5 | 6.5 |
| 200X200X150 | 216.3 | 165.2 | 177.8 | 168.3 | 2.80 | 2.80 | 4.0 | 3.4 | 6.5 | 6.5 |
| 200X200X125 | 216.3 | 139.8 | 177.8 | 161.9 | 2.80 | 2.80 | 4.0 | 3.4 | 6.5 | 6.5 |
| 250 | 267.4 | 267.4 | 215.9 | 215.9 | 3.40 | 3.40 | 4.0 | 4.0 | 6.5 | 6.5 |
| 250X250X200 | 267.4 | 216.3 | 215.9 | 203.2 | 3.40 | 2.80 | 4.0 | 4.0 | 6.5 | 6.5 |
| 250X250X150 | 267.4 | 165.2 | 215.9 | 193.7 | 3.40 | 2.80 | 4.0 | 3.4 | 6.5 | 6.5 |
| 300 | 318.5 | 318.5 | 254.0 | 2540.0 | 4.00 | 4.00 | 4.5 | 4.5 | 6.5 | 6.5 |
| 300X300X250 | 318.5 | 267.4 | 254.0 | 241.3 | 4.00 | 3.40 | 4.5 | 4.0 | 6.5 | 6.5 |
| 300X300X200 | 318.5 | 216.3 | 254.0 | 228.6 | 4.00 | 2.80 | 4.5 | 4.0 | 6.5 | 6.5 |
| 350 | 355.6 | 355.6 | 279.4 | 279.4 | - | - | - | - | - | - |
| 350X350X300 | 355.6 | 318.5 | 279.4 | 269.9 | - | - | - | - | - | - |
| 350X350X250 | 355.6 | 267.4 | 279.4 | 257.2 | - | - | - | - | - | - |
| 350X350X200 | 355.6 | 216.3 | 279.4 | 24.7 | - | - | - | - | - | - |
| 400 | 406.4 | 406.4 | 304.8 | 304.8 | - | - | - | - | - | - |
| 400X400X350 | 406.4 | 355.6 | 304.8 | 304.8 | - | - | - | - | - | - |
| 400X400X300 | 406.4 | 318.5 | 304.8 | 295.3 | - | - | - | - | - | - |
| 400X400X250 | 406.4 | 267.4 | 304.8 | 282.6 | - | - | - | - | - | - |
| 450 | 457.2 | 457.2 | 342.9 | 342.9 | - | - | - | - | - | - |
| 450X450X400 | 457.2 | 406.4 | 342.9 | 330.2 | - | - | - | - | - | - |
| 450X450X350 | 457.2 | 355.6 | 342.9 | 330.2 | - | - | - | - | - | - |
| 450X450X300 | 457.2 | 318.5 | 342.9 | 320.7 | - | - | - | - | - | - |
| 500 | 508.0 | 508.0 | 381.0 | 381.0 | - | - | - | - | - | - |
| 500X500X450 | 508.0 | 457.2 | 381.0 | 368.0 | - | - | - | - | - | - |
| 500X500X400 | 508.0 | 406.4 | 381.0 | 355.6 | - | - | - | - | - | - |
| 500X500X350 | 508.0 | 355.6 | 381.0 | 355.6 | - | - | - | - | - | - |
| 550 | 558.8 | 558.8 | 419.1 | 419.1 | - | - | - | - | - | - |
| 550X550X500 | 558.8 | 508.0 | 419.1 | 406.4 | - | - | - | - | - | - |
| 550X550X450 | 558.8 | 457.2 | 419.1 | 393.7 | - | - | - | - | - | - |
| 550X550X400 | 558.8 | 406.4 | 419.1 | 381.0 | - | - | - | - | - | - |
| 600 | 609.6 | 609.6 | 431.8 | 431.8 | - | - | - | - | - | - |
| 600X600X550 | 609.6 | 558.8 | 431.8 | 431.8 | - | - | - | - | - | - |
| 600X600X500 | 609.6 | 508.0 | 431.8 | 431.8 | - | - | - | - | - | - |
| 600X600X400 | 609.6 | 457.2 | 431.8 | 419.1 | - | - | - | - | - | - |
| 750 | 762.0 | 762.0 | 558.8 | 558.8 | - | - | - | - | - | - |
| 750X750X600 | 762.0 | 609.6 | 558.8 | 533.4 | - | - | - | - | - | - |
