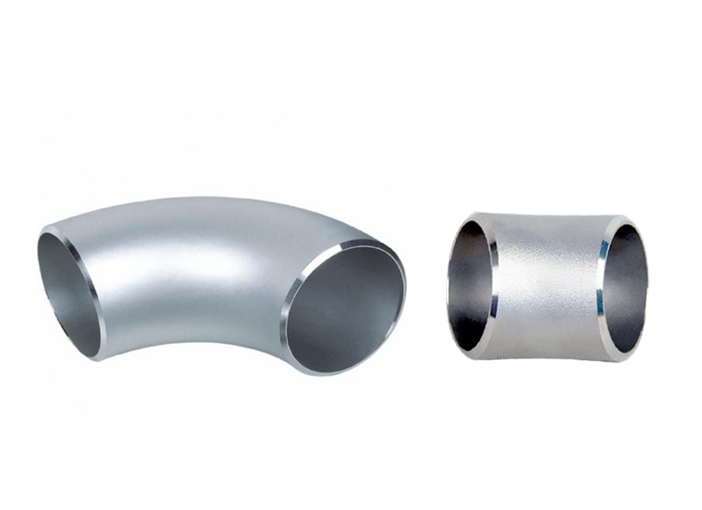

Stainless Steel JIS/KS Elbow 45°90°
SPECIFICATIONS
Stainless Steel
JIS/KS
Elbow 90°(long,short)
Elbow 45° (long)
▪ All dimensions are in mm
▪ All dimensions are in mm
| Nominal Pipe Size |
Outside Diameter O.D |
Center to End | Wall Thickness | ||||
| Long | Short | SCH5S | SCH10S | SCH20S | |||
| F(90 °) | H(45 °) | F(90 °) | T | T | T | ||
| 15 | 21.7 | 38.1 | 15.8 | - | 1.65 | 2.1 | 2.5 |
| 20 | 27.2 | 38.1 | 15.8 | - | 1.65 | 2.1 | 2.5 |
| 25 | 34.0 | 38.1 | 15.8 | 25.4 | 1.65 | 2.8 | 3.0 |
| 32 | 42.7 | 47.6 | 19.7 | 31.8 | 1.65 | 2.8 | 3.0 |
| 40 | 48.6 | 57.2 | 23.7 | 38.1 | 1.65 | 2.8 | 3.0 |
| 50 | 60.5 | 76.2 | 31.6 | 50.8 | 1.65 | 2.8 | 3.5 |
| 65 | 76.3 | 95.3 | 39.5 | 63.5 | 2.10 | 3.0 | 3.5 |
| 80 | 89.1 | 114.3 | 47.3 | 76.2 | 2.10 | 3.0 | 4.0 |
| 90 | 101.6 | 133.4 | 55.3 | 88.9 | 2.10 | 3.0 | 4.0 |
| 100 | 114.3 | 152.4 | 63.1 | 101.6 | 2.10 | 3.0 | 4.0 |
| 125 | 139.8 | 190.0 | 78.9 | 127.0 | 2.80 | 3.4 | 5.0 |
| 150 | 165.2 | 228.6 | 94.7 | 152.4 | 2.80 | 3.4 | 5.0 |
| 200 | 216.3 | 304.8 | 126.3 | 203.2 | 2.80 | 4.0 | 6.5 |
| 250 | 267.4 | 381.0 | 157.8 | 254.0 | 3.40 | 4.0 | 6.5 |
| 300 | 318.5 | 457.2 | 189.4 | 304.8 | 4.00 | 4.5 | 6.5 |
| 350 | 355.6 | 533.4 | 220.9 | 355.6 | - | - | - |
| 400 | 406.4 | 609.6 | 252.5 | 406.4 | - | - | - |
| 450 | 457.2 | 685.8 | 284.1 | 457.2 | - | - | - |
| 500 | 508.0 | 762.0 | 315.6 | 508.0 | - | - | - |
| 550 | 558.8 | 838.2 | 347.2 | 558.8 | - | - | - |
| 600 | 609.6 | 914.4 | 378.7 | 609.6 | - | - | - |
| 750 | 762.0 | 1143.0 | 473.4 | 762.0 | - | - | - |
