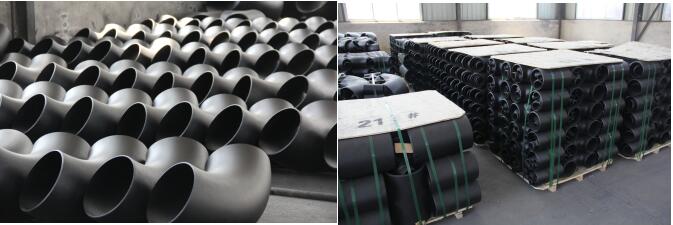

Pipe Elbow Support
SPECIFICATIONS
Pipe Elbow Support
We can produce pipe elbows according to the drawings of customers’ requirements, if the customer does not have professional designers we can also provide pipe elbow technical support, only need customers to provide the application of the pipe elbow, weather climate, chain pipe parts of the caliber, pipe material, main uses, etc., Our technical personnel can provide a more consistent practical solutions according to customer's needs.
Nominal Pipe Size |
Outside Diameter O.D |
Cap | 180° Elbow | Wall Thickness T | ||||||||
E | E1 | Limited Wall Thickness for E |
Long | Short | SCH40 | SCH80 | SCH120 | SCH160 | ||||
O | K | O | K | |||||||||
15 | 21.7 | 25.4 | - | - | 76.2 | 49.0 | - | - | 2.8 | 3.7 | - | 4.7 |
20 | 27.2 | 25.4 | - | - | 76.2 | 51.7 | - | - | 2.9 | 3.9 | - | 5.5 |
25 | 34.0 | 38.1 | - | - | 76.2 | 55.1 | 50.8 | 42.4 | 3.4 | 4.5 | - | 6.4 |
32 | 42.7 | 38.1 | - | - | 95.2 | 69.0 | 63.6 | 53.2 | 3.6 | 4.9 | - | 6.4 |
40 | 48.6 | 38.1 | - | - | 114.4 | 81.5 | 76.2 | 62.4 | 3.7 | 5.1 | - | 7.1 |
50 | 60.5 | 38.1 | 44.5 | 5.5 | 152.4 | 106.5 | 101.6 | 81.1 | 3.9 | 5.5 | - | 8.7 |
65 | 76.3 | 38.1 | 50.8 | 7.0 | 190.6 | 133.5 | 127.0 | 101.7 | 5.2 | 7.0 | - | 9.5 |
80 | 89.1 | 50.8 | 63.5 | 7.6 | 228.6 | 158.9 | 152.4 | 120.8 | 5.5 | 7.6 | - | 11.1 |
90 | 101.6 | 63.5 | 76.2 | 8.1 | 266.8 | 184.2 | 177.8 | 139.7 | 5.7 | 8.1 | - | 12.7 |
100 | 114.3 | 63.5 | 76.2 | 8.6 | 304.8 | 209.6 | 203.2 | 158.8 | 6.0 | 8.6 | 11.1 | 13.5 |
125 | 139.8 | 76.2 | 88.9 | 9.5 | 381.0 | 260.4 | 254.0 | 196.9 | 6.6 | 9.5 | 12.7 | 15.9 |
150 | 165.2 | 88.9 | 101.6 | 11.0 | 457.2 | 311.2 | 304.8 | 235.0 | 7.1 | 11.0 | 14.3 | 18.2 |
200 | 216.3 | 101.6 | 127.0 | 12.7 | 609.6 | 413.0 | 406.4 | 311.4 | 8.2 | 12.7 | 18.2 | 23.0 |
250 | 267.4 | 127.0 | 152.4 | 12.7 | 762.0 | 514.7 | 508.0 | 387.7 | 9.3 | 15.1 | 21.4 | 28.6 |
300 | 318.5 | 152.4 | 177.8 | 12.7 | 914.4 | 616.5 | 609.6 | 464.1 | 10.3 | 17.4 | 25.4 | 33.3 |
350 | 355.6 | 165.1 | 190.5 | 12.7 | 1066.8 | 711.2 | 711.2 | 533.4 | 11.1 | 19.0 | 27.8 | 35.7 |
400 | 406.4 | 177.8 | 203.2 | 12.7 | 1219.2 | 812.8 | 812.8 | 609.6 | 12.7 | 21.4 | 30.9 | 40.5 |
450 | 457.2 | 203.2 | 228.6 | 12.7 | 1371.6 | 914.4 | 914.4 | 685.8 | 14.3 | 23.8 | 34.9 | 45.2 |
500 | 508.0 | 228.6 | 254.0 | 12.7 | 1524.0 | 1016.0 | 1016.0 | 762.0 | 15.1 | 26.2 | 38.1 | 50.0 |
welcome you contact us ,If you have some question. our email sales@metleader.com
