carbon steel AMSE B16.5 short elbow

SPECIFICATIONS

carbon steel AMSE B16.5 short elbow

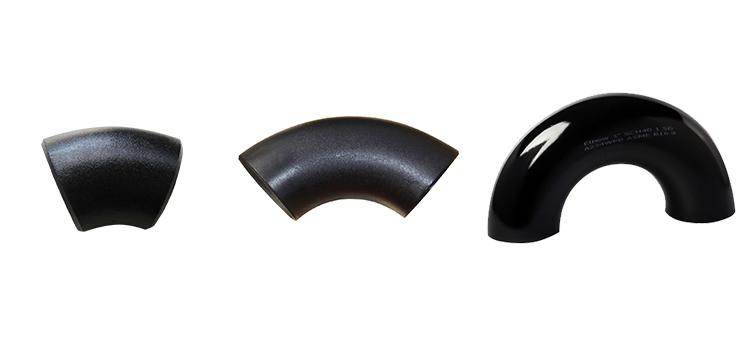

carbon steel AMSE B16.5 short elbow have 90 degree short elbow,45 degree short elbow and 180 degree short elbow and some customized sized.
carbon steel AMSE B16.5 short elbow is a standard of some American Standard.
This is some american standard:
Standards: ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule: Sch 5 TO Sch XXS.
Sizes: Diameters – from 21,3 to 711 mm.

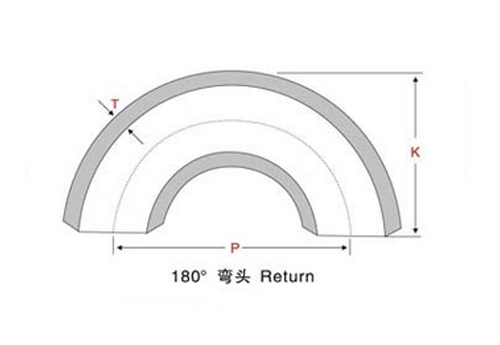

carbon steel AMSE B16.5 short elbow
Nominal
Pipe Size		 Outside
Diameter
O.D		 Center to End STD SCH40 X-S SCH80 SCH160 XX-S
Long Short T T T T T T
A B A
1/2 0.840 1.50 0.62 - 0.109 0.109 0.147 0.147 0.188 0.294
3/4 1.050 1.50 0.75 - 0.113 0.113 0.154 0.154 0.219 0.308
1 1.315 1.50 0.88 1.00 0.133 0.133 0.179 0.179 0.250 0.358
1 1/4 1.660 1.88 1.00 1.25 0.140 0.140 0.191 0.191 0.250 0.382
1 1/2 1.900 2.25 1.12 1.50 0.145 0.145 0.200 0.200 0.281 0.400
2 2.375 3.00 1.38 2.00 0.154 0.154 0.218 0.218 0.344 0.436
2 1/2 2.875 3.75 1.75 2.50 0.203 0.203 0.276 0.276 0.375 0.552
3 3.500 4.25 2.00 3.00 0.216 0.216 0.300 0.300 0.438 0.600
3 1/2 4.000 5.25 2.25 3.50 0.226 0.226 0.318 0.318 - -
4 4.500 6.00 2.50 4.00 0.237 0.237 0.337 0.337 0.531 0.674
5 5.563 7.50 3.12 5.00 0.258 0.258 0.375 0.375 0.625 0.750
6 6.625 9.00 3.75 6.00 0.280 0.280 0.432 0.432 0.719 0.864
8 8.625 12.00 5.00 8.00 0.322 0.322 0.500 0.500 0.906 0.875
10 10.750 15.00 6.25 10.00 0.365 0.365 0.500 0.500 1.125 1.000
12 12.750 18.00 7.50 12.00 0.375 0.406 0.500 0.688 1.312 1.000
14 14.000 21.00 8.75 14.00 0.375 0.438 0.500 0.750 1.406 -
16 16.000 24.00 10.00 16.00 0.375 0.500 0.500 0.844 1.594 -
18 18.000 27.00 11.25 18.00 0.375 0.562 0.500 0.938 1.781 -
20 20.000 30.00 12.50 20.00 0.375 0.594 0.500 1.031 1.969 -
22 22.000 33.00 13.50 22.00 0.375 - 0.500 1.125 2.125 -
24 24.000 - - - 0.375 0.688 0.500 1.219 2.344 -
26 26.000 - - - 0.375 - 0.500 - - -
28 28.000 - - - 0.375 - 0.500 - - -
30 30.000 - - - 0.375 - 0.500 - - -
32 32.000 - - - 0.375 0.688 0.500 - - -
34 34.000 51.00 21.00 - 0.375 0.688 0.500 - - -
36 36.000 54.00 22.25 - 0.375 0.750 0.500 - - -
38 38.000 57.00 23.62 - 0.375 - 0.500 - - -
40 40.000 60.00 24.88 - 0.375 - 0.500 - - -
42 42.000 63.00 26.00 - 0.375 - 0.500 - - -
44 44.000 66.00 27.38 - 0.375 - 0.500 - - -
46 46.000 69.00 28.62 - 0.375 - 0.500 - - -
48 48.000 72.00 29.88 - 0.375 - 0.500 - - -
