Threaded Flange DIN2565 Dimension

SPECIFICATIONS

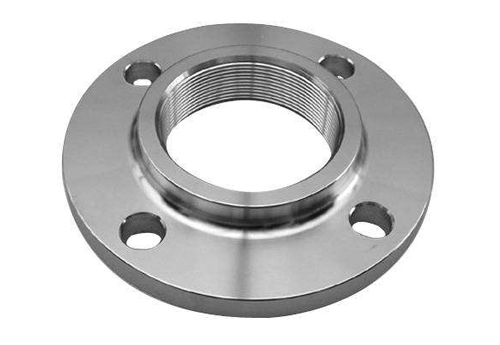

Threaded Flange DIN2565 Dimension
Our company supply all kinds of pipe fittings and flanges, Threaded flange DIN2565 is one of our flanges.
Pls kindly check the dimensions as below:

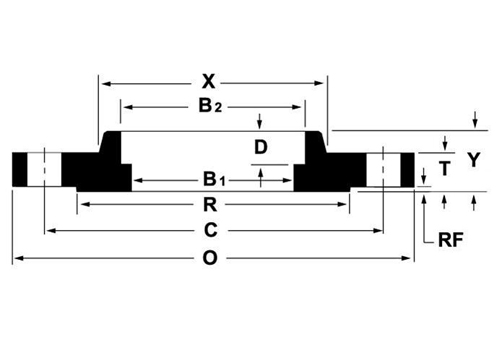

Dimension and Weight of DIN2565 PN6 Threaded Flange
Rated Diameter O.D. Of Pipe Flange Dimension Neck Size Parameter of R.F. Screws Dimension Approx. Flange Weight
DN d1 DIN 2999 D b k h1 d3 d4 f No.of holes d2 KG/PCS
6 10.2 R1/8  65 10 40 18 18 25 2 4 11.5 0.19
8 13.5 R1/4  70 10 45 18 22 30 2 4 11.5 0.23
10 17.2 R3/8  75 12 50 20 25 35 2 4 11.5 0.32
15 21.3 R1/2  80 12 55 20 30 40 2 4 11.5 0.37
20 26.9 R3/4  90 14 65 24 40 50 2 4 11.5 0.58
25 33.7 R1  100 14 75 24 50 60 2 4 11.5 0.73
32 42.4 R1.1/4  120 14 90 26 60 70 2 4 14 1.05
40 48.3 R1.1/2  130 14 100 26 70 80 3 4 14 1.2
50 50.3 R2  140 14 110 28 80 90 3 4 14 1.54
65 76.1 R2.1/2  160 14 130 32 100 110 3 4 14 1.87
80 88.9 R3  190 16 150 34 110 128 3 4 18 2.78
100 114.3 R4  210 16 170 38 130 148 3 4 18 3.07
150 139.7 R5  240 18 200 40 160 178 3 8 18 4.33
200 168.3 R6  285 18 225 44 185 202 3 8 18 4.81
