Class 900 weld neck flange dimensions
Weld neck flange dimensions are covered in ASME B16.5 – which covers Pipe Flanges and Flanged Fittings for size NPS ½” to 24” for above NPS 26” to 60” it should be as per ASME B16.47.
During dimensional inspection of flange, you should check for：
1）Outer & Inner Diameter of body
2）Bolt Circle & Bolt hole Diameter
3）the thickness of weld end
4）Length of the Hub and
5）Straightness and alignment of the bolt hole

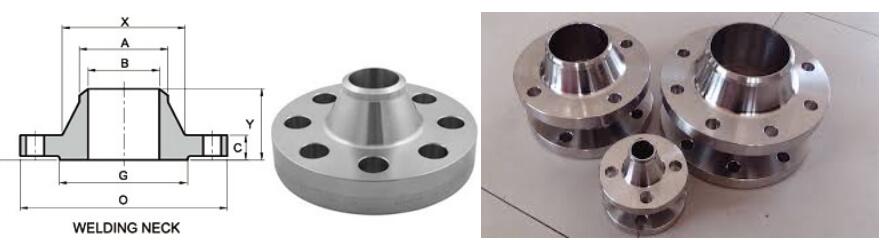

Class 900 Weld Neck Flange Dimensions
|
Size in Inch |
Size in mm |
Outer Diameter |
Flange Thickness |
Hub OD |
Weld Neck OD |
Welding Neck Length |
Bore |
RF Diameter |
RF Height |
PCD |
Weld Face |
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
||
|
1/2 |
15 |
120 |
22.3 |
38 |
21.3 |
60 |
Refer Note |
34.9 |
7 |
82.6 |
1.6 |
|
3/4 |
20 |
130 |
25.4 |
44 |
26.7 |
70 |
42.9 |
7 |
88.9 |
1.6 |
|
|
1 |
25 |
150 |
28.6 |
52 |
33.4 |
73 |
50.8 |
7 |
101.6 |
1.6 |
|
|
1 1/4 |
32 |
160 |
28.6 |
64 |
42.2 |
73 |
63.5 |
7 |
111.1 |
1.6 |
|
|
1 1/2 |
40 |
180 |
31.8 |
70 |
48.3 |
83 |
73 |
7 |
123.8 |
1.6 |
|
|
2 |
50 |
215 |
38.1 |
105 |
60.3 |
102 |
92.1 |
7 |
165.1 |
1.6 |
|
|
2 1/2 |
65 |
245 |
41.3 |
124 |
73 |
105 |
104.8 |
7 |
190.5 |
1.6 |
|
|
3 |
80 |
240 |
38.1 |
127 |
88.9 |
102 |
127 |
7 |
190.5 |
1.6 |
|
|
4 |
100 |
290 |
44.5 |
159 |
114.3 |
114 |
157.2 |
7 |
235 |
1.6 |
|
|
5 |
125 |
350 |
50.8 |
190 |
141.3 |
127 |
185.7 |
7 |
279.4 |
1.6 |
|
|
6 |
150 |
380 |
55.6 |
235 |
168.3 |
140 |
215.9 |
7 |
317.5 |
1.6 |
|
|
8 |
200 |
470 |
63.5 |
298 |
219.1 |
162 |
269.9 |
7 |
393.7 |
1.6 |
|
|
10 |
250 |
545 |
69.9 |
368 |
273 |
184 |
323.8 |
7 |
469.9 |
1.6 |
|
|
12 |
300 |
610 |
79.4 |
419 |
323.8 |
200 |
381 |
7 |
533.4 |
1.6 |
|
|
14 |
350 |
640 |
85.8 |
451 |
355.6 |
213 |
412.8 |
7 |
558.8 |
1.6 |
|
|
16 |
400 |
705 |
88.9 |
508 |
406.4 |
216 |
469.9 |
7 |
616 |
1.6 |
|
|
18 |
450 |
785 |
101.6 |
565 |
457 |
229 |
533.4 |
7 |
685.8 |
1.6 |
|
|
20 |
500 |
855 |
108 |
622 |
508 |
248 |
584.2 |
7 |
749.3 |
1.6 |
|
|
24 |
600 |
1040 |
139.7 |
749 |
610 |
292 |
692.2 |
7 |
901.7 |
1.6 |
