how to calculate the 60 degree elbow dimensions

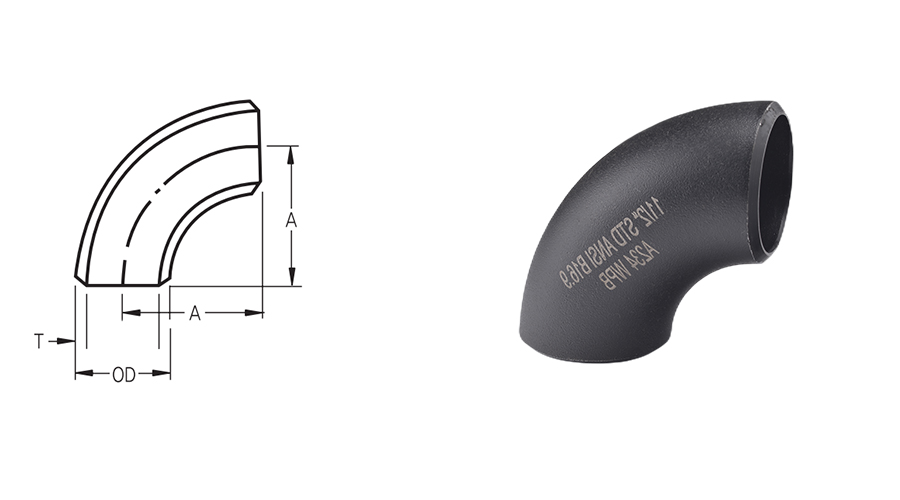

To calculate the dimensions of a 60-degree elbow, you need to consider a few key measurements. These dimensions include the center-to-face (A), center-to-end (B), and outside diameter (OD).Here's how you can calculate them:
Determine the pipe size: The dimensions of the elbow will depend on the size of the pipe it is intended for. The pipe size is typically specified in inches (e.g., 1 inch, 2 inches, etc.).Determine the pipe diameter: The pipe diameter is the inside diameter (ID) of the pipe. You can usually find standard pipe sizes and corresponding diameters from industry references or standards.
Calculate the center-to-face (A) dimension:
For pipe sizes up to 2 inches: Multiply the pipe diameter by 1.5. A = 1.5 x Pipe Diameter.For pipe sizes larger than 2 inches: The center-to-face dimension is typically the same as 1.5 times the pipe diameter. A = 1.5 x Pipe Diameter.
Calculate the outside diameter (OD): The outside diameter of the elbow is generally the same as the corresponding pipe size.
Calculate the center-to-end (B) dimension:
For pipe sizes up to 2 inches: The center-to-end dimension is typically equal to the pipe diameter. B = Pipe Diameter.For pipe sizes larger than 2 inches: Multiply the pipe diameter by 1.5. B = 1.5 x Pipe Diameter.
Keep in mind that these calculations provide general guidelines and may vary depending on specific industry standards, manufacturers, and materials. It's always recommended to consult relevant standards or consult with a professional engineer or supplier for precise dimensions based on your specific application requirements.
