Spiral Welded Pipe
SPECIFICATIONS

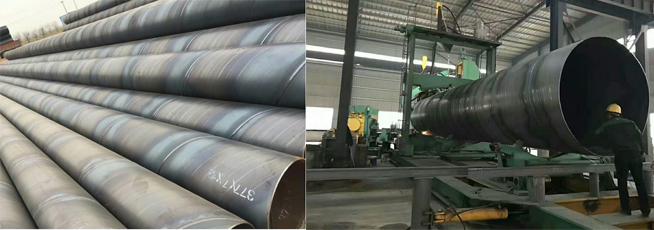

Spiral Welded Pipe
Metleader exports Spiral welded pipe to many countries and regions in the world. We also manufacture pipe fittings and flanges, which is known as its stable quality and comprehensive services.
Spiral welded pipe production process: is the area of steel coils for raw materials, often warm extrusion molding, automatic double-wire double-sided submerged arc welding process into the spiral welded steel pipe. The characteristics of spiral steel pipe: straight seam steel pipe production process is simple, high production efficiency, low cost. The strength of spiral steel pipe is generally higher than that of straight seam.
Specification of Spiral welded pipe/SSAW pipe
Outer聽Diameter(mm) | Wall聽Thickness(mm) | Length(m) |
219 | 6~8 | 12 |
273 | 6~10 | 12 |
325 | 6~14 | 12 |
377 | 6~14 | 12 |
426 | 6~16 | 12 |
478 | 6~16 | 12 |
508 | 6~18 | 12 |
529 | 6~18 | 12 |
610 | 6~19 | 12 |
630 | 6~19 | 12 |
720 | 6~22 | 12 |
820 | 7~22 | 12 |
920 | 8~23 | 12 |
1016 | 8~23 | 12 |
1020 | 8~23 | 12 |
1220 | 8~23 | 12 |
1420 | 10~23 | 12 |
1620 | 10~23 | 12 |
1820 | 10~25.4 | 12 |
2020 | 10~25.4 | 12 |
2200 | 10~25.4 | 12 |
2420 | 10~25.4 | 12 |
2620 | 10~25.4 | 12 |

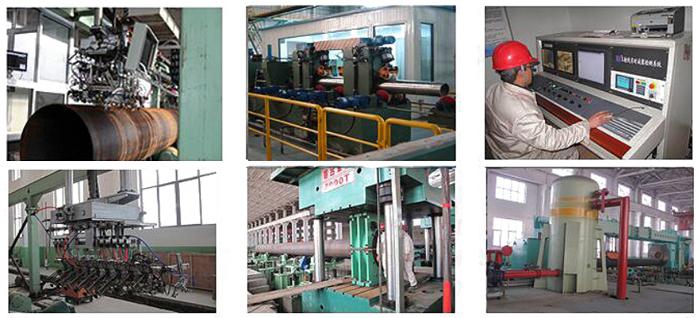

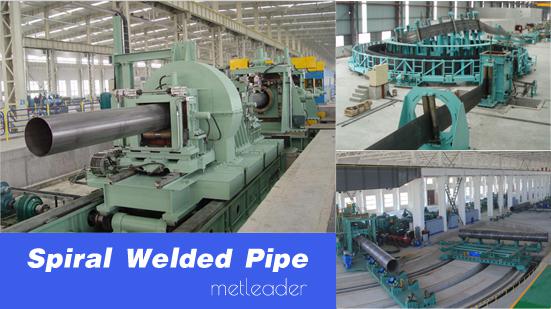

Factory Processes of Spiral welded pipe/SSAW pipe
Scientific test equipment for Spiral welded pipe/SSAW pipe
It can produce Spiral welded pipe with larger pipe diameter with narrow material, and it can produce spiral steel pipe with different diameter by the same width steel strip. The general low pressure fluid conveying spiral-sided submerged arc welded pipe is made of double-sided automatic submerged arc welding or single-sided welding, used for water conveyance, gas, air, steam, construction piling, low pressure conveying pipeline, etc.
If you need Spiral welded pipe welcome you contact us
