Long Radius 90 Degree Steel Elbow
SPECIFICATIONS
Long Radius 90 Degree Steel Elbow
90-degree long radius elbow
Metleader Steel is a manufacturer of 90-degree elbow with long radius. 90-degree long radius elbow using high-quality raw materials manufacturing. The 90-degree long radius elbow is used to connect pipes of different diameters and is widely used in various chemicals, construction industries, paper making, cement and shipyards.
We use advanced production equipment to make our 90-degree short radius elbow (1D d711.2〜d1219.2), not only can improve product quality, but also can save raw materials.

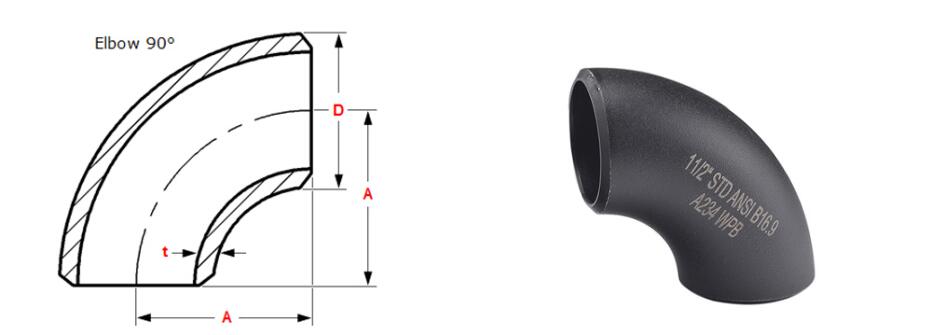

ASME B16.9 Butt Weld 90-degree carbon steel long radius elbow size
| Nominal Pipe Size |
Outside Diameter O.D |
Center to End | STD | SCH40 | X-S | SCH80 | SCH160 | XX-S | ||
| Long | Short | T | T | T | T | T | T | |||
| A | B | A | ||||||||
| 1/2 | 0.840 | 1.50 | 0.62 | - | 0.109 | 0.109 | 0.147 | 0.147 | 0.188 | 0.294 |
| 3/4 | 1.050 | 1.50 | 0.75 | - | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 |
| 1 | 1.315 | 1.50 | 0.88 | 1.00 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 |
| 1 1/4 | 1.660 | 1.88 | 1.00 | 1.25 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 |
| 1 1/2 | 1.900 | 2.25 | 1.12 | 1.50 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 |
| 2 | 2.375 | 3.00 | 1.38 | 2.00 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 |
| 2 1/2 | 2.875 | 3.75 | 1.75 | 2.50 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 |
| 3 | 3.500 | 4.25 | 2.00 | 3.00 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 |
| 3 1/2 | 4.000 | 5.25 | 2.25 | 3.50 | 0.226 | 0.226 | 0.318 | 0.318 | - | - |
| 4 | 4.500 | 6.00 | 2.50 | 4.00 | 0.237 | 0.237 | 0.337 | 0.337 | 0.531 | 0.674 |
| 6 | 6.625 | 9.00 | 3.75 | 6.00 | 0.280 | 0.280 | 0.432 | 0.432 | 0.719 | 0.864 |
| 8 | 8.625 | 12.00 | 5.00 | 8.00 | 0.322 | 0.322 | 0.500 | 0.500 | 0.906 | 0.875 |
| 10 | 10.750 | 15.00 | 6.25 | 10.00 | 0.365 | 0.365 | 0.500 | 0.500 | 1.125 | 1.000 |
| 12 | 12.750 | 18.00 | 7.50 | 12.00 | 0.375 | 0.406 | 0.500 | 0.688 | 1.312 | 1.000 |
| 14 | 14.000 | 21.00 | 8.75 | 14.00 | 0.375 | 0.438 | 0.500 | 0.750 | 1.406 | - |
| 16 | 16.000 | 24.00 | 10.00 | 16.00 | 0.375 | 0.500 | 0.500 | 0.844 | 1.594 | - |
| 18 | 18.000 | 27.00 | 11.25 | 18.00 | 0.375 | 0.562 | 0.500 | 0.938 | 1.781 | - |
| 20 | 20.000 | 30.00 | 12.50 | 20.00 | 0.375 | 0.594 | 0.500 | 1.031 | 1.969 | - |
| 22 | 22.000 | 33.00 | 13.50 | 22.00 | 0.375 | - | 0.500 | 1.125 | 2.125 | - |
| 24 | 24.000 | - | - | - | 0.375 | 0.688 | 0.500 | 1.219 | 2.344 | - |
| 26 | 26.000 | - | - | - | 0.375 | - | 0.500 | - | - | - |
| 28 | 28.000 | - | - | - | 0.375 | - | 0.500 | - | - | - |
| 30 | 30.000 | - | - | - | 0.375 | - | 0.500 | - | - | - |
| 32 | 32.000 | - | - | - | 0.375 | 0.688 | 0.500 | - | - | - |
| 34 | 34.000 | 51.00 | 21.00 | - | 0.375 | 0.688 | 0.500 | - | - | - |
| 36 | 36.000 | 54.00 | 22.25 | - | 0.375 | 0.750 | 0.500 | - | - | - |
| 38 | 38.000 | 57.00 | 23.62 | - | 0.375 | - | 0.500 | - | - | - |
| 40 | 40.000 | 60.00 | 24.88 | - | 0.375 | - | 0.500 | - | - | - |
| 42 | 42.000 | 63.00 | 26.00 | - | 0.375 | - | 0.500 | - | - | - |
| 44 | 44.000 | 66.00 | 27.38 | - | 0.375 | - | 0.500 | - | - | - |
| 46 | 46.000 | 69.00 | 28.62 | - | 0.375 | - | 0.500 | - | - | - |
| 48 | 48.000 | 72.00 | 29.88 | - | 0.375 | - | 0.500 | - | - | - |
