Concentric Pipe Reducer Supplier
We are concentric pipe reducer supplier. Our company name is Beijing Metleader Pipeline Technology Inc. Expect concentric pipe reducer we also have pipe elbow,pipe tee,pipe cap and pipe flanges.Today i introduc concentric pipe reducer.

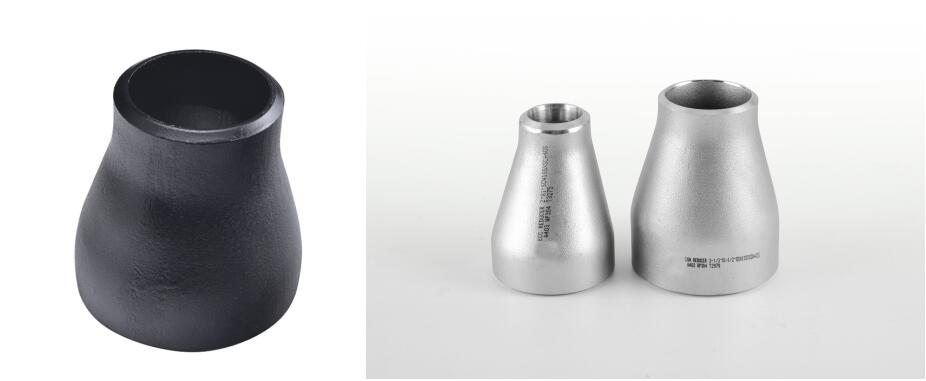

A concentric reducer is used to join pipe sections or tube sections on the same axis. The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes. For example, when a 1" pipe transitions into a 3/4" pipe and the top or bottom of the pipe doesn't need to remain level. This pipe reducer may be used when there is a single diameter change or multiple diameter changes.Unlike eccentric reducers, concentric reducers have a common center line. Concentric reducers are useful when cavitation is present. Eccentricity occurs when the centerline is offset.
The concentric reducer has carbon steel concentric reducer and stainless steel concentric reducer.Usually the price of SS reducer more than CS reducer.
According to you using you can choose different material.The pipe reducer also has ecc reducer.
This is some standard of concentric reducer:
A concentric reducer is used to join pipe sections or tube sections on the same axis. The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes. For example, when a 1" pipe transitions into a 3/4" pipe and the top or bottom of the pipe doesn't need to remain level. This pipe reducer may be used when there is a single diameter change or multiple diameter changes.Unlike eccentric reducers, concentric reducers have a common center line. Concentric reducers are useful when cavitation is present. Eccentricity occurs when the centerline is offset.
The concentric reducer has carbon steel concentric reducer and stainless steel concentric reducer.Usually the price of SS reducer more than CS reducer.
According to you using you can choose different material.The pipe reducer also has ecc reducer.
This is some standard of concentric reducer:
Nominal Pipe Size |
Outside Diameter | End to End | STD | SCH40 | X-S | SCH80 | SCH160 | XX-S | |||||||
OD1 | OD2 | H | T1 | T2 | T1 | T2 | T1 | T2 | T1 | T2 | T1 | T2 | T1 | T2 | |
3/4X1/2 | 1.050 | 0.840 | 1.50 | 0.113 | 0.109 | 0.113 | 0.109 | 0.154 | 0.147 | 0.154 | 0.147 | 0.219 | 0.188 | 0.308 | 0.294 |
1X3/4 | 1.315 | 1.050 | 2.00 | 0.133 | 0.113 | 0.133 | 0.113 | 0.179 | 0.154 | 0.179 | 0.154 | 0.250 | 0.219 | 0.358 | 0.308 |
1X1/2 | 1.315 | 0.840 | 2.00 | 0.133 | 0.109 | 0.133 | 0.109 | 0.179 | 0.147 | 0.179 | 0.147 | 0.250 | 0.188 | 0.358 | 0.294 |
1-1/4X1 | 1.660 | 1.315 | 2.00 | 0.140 | 0.133 | 0.140 | 0.133 | 0.191 | 0.179 | 0.191 | 0.179 | 0.250 | 0.250 | 0.382 | 0.358 |
1-1/4X3/4 | 1.660 | 1.050 | 2.00 | 0.140 | 0.113 | 0.140 | 0.113 | 0.191 | 0.154 | 0.191 | 0.154 | 0.250 | 0.219 | 0.382 | 0.308 |
1-1/4X1/2 | 1.660 | 0.84 | 2.00 | 0.140 | 0.109 | 0.140 | 0.109 | 0.191 | 0.147 | 0.191 | 0.147 | 0.250 | 0.188 | 0.382 | 0.294 |
1-1/2X1-1/4 | 1.900 | 1.660 | 2.50 | 0.145 | 0.140 | 0.145 | 0.140 | 0.200 | 0.191 | 0.200 | 0.191 | 0.281 | 0.250 | 0.400 | 0.382 |
1-1/2X1 | 1.900 | 1.315 | 2.50 | 0.145 | 0.133 | 0.145 | 0.133 | 0.200 | 0.179 | 0.200 | 0.179 | 0.281 | 0.400 | 0.400 | 0.358 |
1-1/2X3/4 | 1.900 | 1.050 | 2.50 | 0.145 | 0.113 | 0.145 | 0.113 | 0.200 | 0.154 | 0.200 | 0.154 | 0.281 | 0.219 | 0.400 | 0.308 |
2X1-1/2 | 2.375 | 1.900 | 3.00 | 0.154 | 0.145 | 0.154 | 0.145 | 0.218 | 0.200 | 0.218 | 0.200 | 0.344 | 0.281 | 0.436 | 0.400 |
2X1-1/4 | 2.375 | 1.660 | 3.00 | 0.154 | 0.140 | 0.154 | 0.140 | 0.218 | 0.191 | 0.218 | 0.191 | 0.344 | 0.250 | 0.436 | 0.382 |
2X1 | 2.375 | 1.315 | 3.00 | 0.154 | 0.133 | 0.154 | 0.133 | 0.218 | 0.179 | 0.218 | 0.179 | 0.344 | 0.250 | 0.436 | 0.358 |
2X3/4 | 2.375 | 1.050 | 3.00 | 0.154 | 0.113 | 0.154 | 0.113 | 0.218 | 0.154 | 0.218 | 0.154 | 0.344 | 0.219 | 0.436 | 0.508 |
2-1/2X2 | 2.875 | 2.375 | 3.50 | 0.203 | 0.154 | 0.203 | 0.154 | 0.276 | 0.218 | 0.276 | 0.218 | 0.375 | 0.344 | 0.552 | 0.436 |
2-1/2X1-1/2 | 2.875 | 1.900 | 3.50 | 0.203 | 0.145 | 0.203 | 0.145 | 0.276 | 0.200 | 0.276 | 0.200 | 0.375 | 0.281 | 0.552 | 0.400 |
2-1/2X1-1/4 | 2.875 | 1.660 | 3.50 | 0.203 | 0.140 | 0.203 | 0.140 | 0.276 | 0.191 | 0.276 | 0.191 | 0.375 | 0.250 | 0.552 | 0.382 |
2-1/2X1 | 2.875 | 1.315 | 3.50 | 0.203 | 0.133 | 0.203 | 0.216 | 0.276 | 0.179 | 0.276 | 0.179 | 0.375 | 0.250 | 0.552 | 0.358 |
3X2-1/2 | 3.500 | 2.875 | 3.50 | 0.216 | 0.203 | 0.216 | 0.203 | 0.300 | 0.276 | 0.300 | 0.276 | 0.438 | 0.375 | 0.600 | 0.552 |
3X2 | 3.500 | 2.375 | 3.50 | 0.216 | 0.154 | 0.216 | 0.154 | 0.300 | 0.218 | 0.300 | 0.218 | 0.438 | 0.344 | 0.600 | 0.436 |
3X1-1/2 | 3.500 | 1.900 | 3.50 | 0.216 | 0.145 | 0.216 | 0.145 | 0.300 | 0.200 | 0.300 | 0.200 | 0.438 | 0.281 | 0.600 | 0.400 |
3X1-1/4 | 3.500 | 1.660 | 3.50 | 0.216 | 0.140 | 0.216 | 0.226 | 0.300 | 0.191 | 0.300 | 0.191 | 0.438 | 0.250 | 0.600 | 0.382 |
3-1/2X3 | 4.000 | 3.500 | 4.00 | 0.226 | 0.216 | 0.226 | 0.216 | 0.318 | 0.300 | 0.318 | 0.300 | - | 0.438 | - | 0.600 |
3-1/2X2-1/2 | 4.000 | 2.875 | 4.00 | 0.226 | 0.203 | 0.226 | 0.203 | 0.318 | 0.276 | 0.318 | 0.276 | - | 0.375 | - | 0.552 |
3-1/2X2 | 4.000 | 2.375 | 4.00 | 0.226 | 0.154 | 0.226 | 0.154 | 0.318 | 0.218 | 0.318 | 0.218 | - | 0.344 | - | 0.436 |
3-1/2X1-1/2 | 4.000 | 1.900 | 4.00 | 0.226 | 0.145 | 0.226 | 0.145 | 0.318 | 0.200 | 0.318 | 0.200 | - | 0.281 | - | 0.400 |
4X3-1/2 | 4.500 | 4.000 | 4.00 | 0.237 | 0.226 | 0.237 | 0.226 | 0.337 | 0.318 | 0.337 | 0.318 | 0.531 | - | 0.674 | - |
4X3 | 4.500 | 3.500 | 4.00 | 0.237 | 0.216 | 0.237 | 0.216 | 0.337 | 0.300 | 0.337 | 0.300 | 0.531 | 0.438 | 0.674 | 0.600 |
