Carbon Steel Slip On Flange ANSI B16.5 CLASS 300
SPECIFICATIONS
Carbon Steel Slip On Flange ANSI B16.5 CLASS 300
Carbon steel slip on flange ANSI B16.5 CLASS 300 is on standard of Americal. We also can made JIS and DIN. The slip on flange also have different face, such as MFM,TG,FF, RF. The flange can made different face according to customer using.
What’s Slip On Pipe Flange?
Slip-On Pipe Flanges. As made obvious by their name, these pipe flanges slip over the pipe. They're manufactured with an inside diameter that is slightly bigger than the pipe's outside diameter. These attachments are connected to the pipe via fillet weld at the top and bottom of the flange.
This is some specification of carbon steel slip on flange ANSI B16.5 CLASS 300:
What’s Slip On Pipe Flange?
Slip-On Pipe Flanges. As made obvious by their name, these pipe flanges slip over the pipe. They're manufactured with an inside diameter that is slightly bigger than the pipe's outside diameter. These attachments are connected to the pipe via fillet weld at the top and bottom of the flange.
This is some specification of carbon steel slip on flange ANSI B16.5 CLASS 300:
| Nominal Pipe Size |
Outside Diameter |
Thickness | Raised Face Diameter |
Length Thru Hub |
Point of Weld |
Hub Diameter |
Bore | Approximate Weight | Bolt Circle | Number of Holes |
Diameter of Holes |
| (O) | (T) | (R) | (Y) | (A) | (X) | (B) | (lbs) | (C) | |||
| 1/2 | 3.75 | 0.56 | 1.38 | 2.06 | 0.84 | 1.50 | 0.62 | 2 | 2.63 | 4 | 0.63 |
| 3/4 | 4.63 | 0.63 | 1.69 | 2.25 | 1.05 | 1.88 | 0.82 | 3 | 3.25 | 4 | 0.75 |
| 1 | 4.88 | 0.69 | 2.00 | 2.44 | 1.32 | 2.13 | 1.05 | 4 | 3.50 | 4 | 0.75 |
| 1 1/4 | 5.25 | 0.75 | 2.50 | 2.56 | 1.66 | 2.50 | 1.38 | 5 | 3.88 | 4 | 0.75 |
| 1 1/2 | 6.13 | 0.81 | 2.88 | 2.69 | 1.90 | 2.75 | 1.61 | 7 | 4.50 | 4 | 0.88 |
| 2 | 6.50 | 0.88 | 3.63 | 2.75 | 2.38 | 3.31 | 2.07 | 9 | 5.00 | 8 | 0.75 |
| 2 1/2 | 7.50 | 1.00 | 4.13 | 3.00 | 2.88 | 3.94 | 2.47 | 12 | 5.88 | 8 | 0.88 |
| 3 | 8.25 | 1.13 | 5.00 | 3.13 | 3.50 | 4.63 | 3.07 | 15 | 6.63 | 8 | 0.88 |
| 3 1/2 | 9.00 | 1.19 | 5.50 | 3.19 | 4.00 | 5.25 | 3.55 | 18 | 7.25 | 8 | 0.88 |
| 4 | 10.00 | 1.25 | 6.19 | 3.38 | 4.50 | 5.75 | 4.03 | 25 | 7.88 | 8 | 0.88 |
| 5 | 11.00 | 1.38 | 7.31 | 3.88 | 5.56 | 7.00 | 5.05 | 32 | 9.25 | 8 | 0.88 |
| 6 | 12.50 | 1.44 | 8.50 | 3.88 | 6.63 | 8.13 | 6.07 | 42 | 10.63 | 12 | 0.88 |
| 8 | 15.00 | 1.63 | 10.63 | 4.38 | 8.63 | 10.25 | 7.98 | 67 | 13.00 | 12 | 1.00 |
| 10 | 17.50 | 1.88 | 12.75 | 4.63 | 10.75 | 12.63 | 10.02 | 91 | 15.25 | 16 | 1.13 |
| 12 | 20.50 | 2.00 | 15.00 | 5.13 | 12.75 | 14.75 | 12.00 | 140 | 17.75 | 16 | 1.25 |
| 14 | 23.00 | 2.13 | 16.25 | 5.63 | 14.00 | 16.75 | 13.25 | 180 | 20.25 | 20 | 1.25 |
| 16 | 25.50 | 2.25 | 18.50 | 5.75 | 16.00 | 19.00 | 15.25 | 250 | 22.50 | 20 | 1.38 |
| 18 | 28.00 | 2.38 | 21.00 | 6.25 | 18.00 | 21.00 | 17.25 | 320 | 24.75 | 24 | 1.38 |
| 20 | 30.50 | 2.50 | 23.00 | 6.38 | 20.00 | 23.13 | 19.25 | 400 | 27.00 | 24 | 1.38 |
| 22 | 33.00 | 2.63 | 25.25 | 6.50 | 22.00 | 25.25 | 21.25 | 465 | 29.25 | 24 | 1.63 |
| 24 | 36.00 | 2.75 | 27.25 | 6.63 | 24.00 | 27.63 | 23.25 | 580 | 32.00 | 24 | 1.63 |

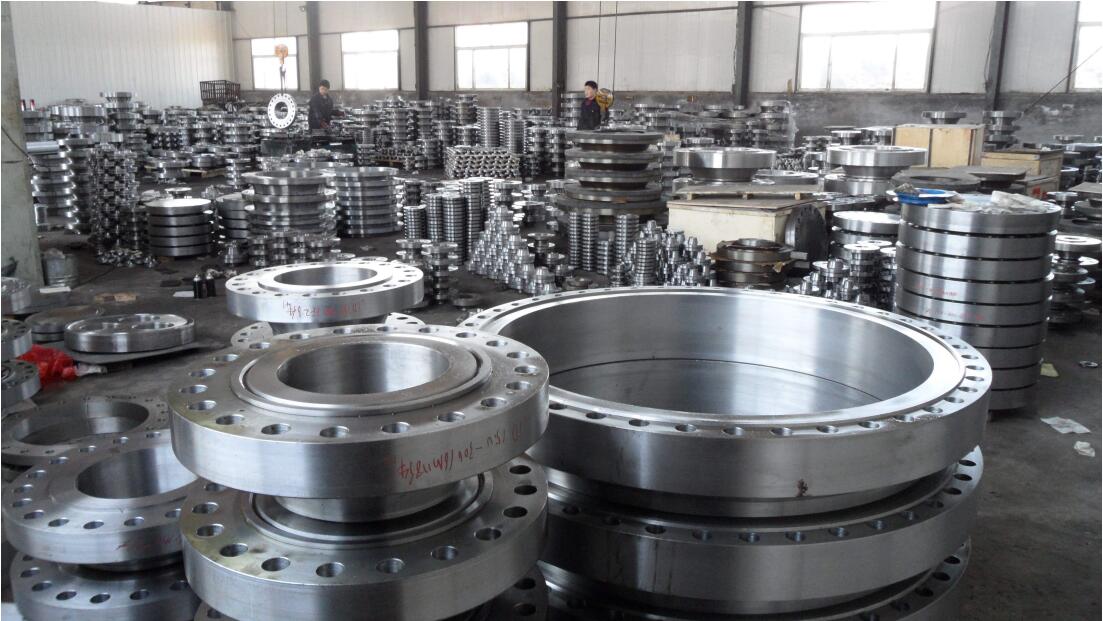

Now we have some stocks in our factory. it is 4 inch and 8 inch carbon steel slip on flange ANSI B16.5 CLASS 300. If you need this product hope you can contact me.
